Neuro Micro-Guidewire-III|Easymed-Medical Guidewire Manufacturer for Vascular & Non-Vascular Intervention

Neuro Micro
Guidewire III

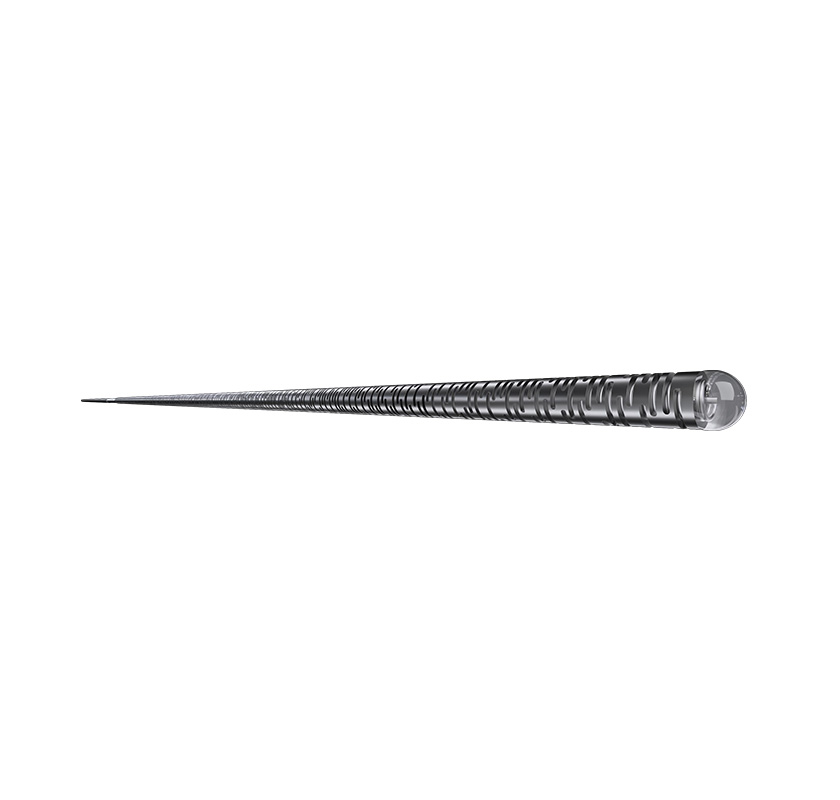

The Neuro Micro-Guidewire III features a distal composite structure comprising a nitinol hypotube with spiral cuts, a flattened core wire, and platinum-tungsten coil. It is intended for use in superselection of small, tortuous intracranial branch vessels.

CUSTOMIZE

Product Features

Hybrid Core Wire Design

Distal Sheath Construction

Shape-Retentive Tip Design

Dual-Zone Coating Technology

Hybrid material core wire balancing support, pushability, and flexibility

Distal covering design further enhances torque transmission

Strong tip shape retention, resistant to rebound during procedures, precise super-selective catheterization

Distal hydrophilic and proximal hydrophobic coating design — low push resistance and excellent trackability, while reducing intraoperative thrombus risk

Intended Use

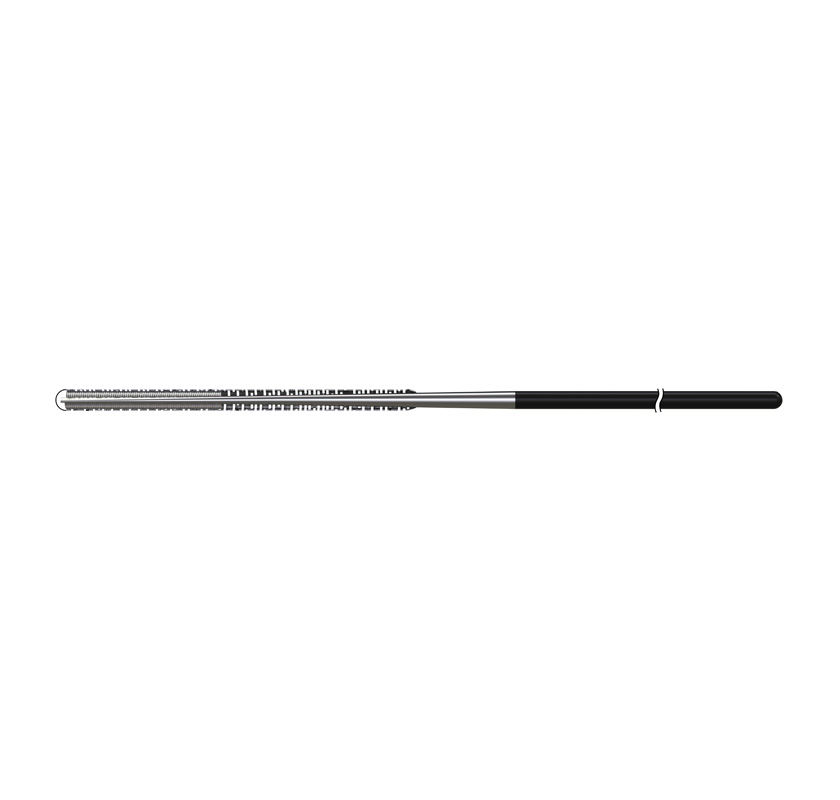

Features a nickel-titanium alloy cut hypotube combined with a flat core wire and platinum-tungsten wire-wound distal composite structure. Applicable for super-selective catheterization of intracranial small tortuous branches.

Technical Specifications & Materials

Model	Specification (in)	Distal OD (mm)	Proximal OD (mm)	Effective Length L (cm)	Hydrophilic Coating Length (mm)	Tip Flexibility
NWC010215ST	0.010	0.26 ^+0.02/_-0.04	0.31 ^+0.01/_-0.04	215±5%	550	Soft
NWC010310ST				310±5%		Soft
NWC010215MD				215±5%		Standard
NWC010310MD				310±5%		Standard
NWC010215EX				215±5%		Support
NWC010310EX				310±5%		Support
NWC012215ST	0.012	0.30 ^+0.02/_-0.04	0.36 ^+0.01/_-0.04	215±5%	350	Soft
NWC012310ST				310±5%		Soft
NWC012215MD				215±5%		Standard
NWC012310MD				310±5%		Standard
NWC012215EX				215±5%		Support
NWC012310EX				310±5%		Support
NWC014215ST	0.014	0.36 ^+0.02/_-0.04	0.36 ^+0.01/_-0.04	215±5%	350	Soft
NWC014310ST				310±5%		Soft
NWC014215MD				215±5%		Standard
NWC014310MD				310±5%		Standard
NWC014215EX				215±5%		Support
NWC014310EX				310±5%		Support
